A chromatography column is packed, qualified, and put into service. The efficiency test at qualification establishes a baseline. Some number of process cycles later, the same test on the same column returns a higher HETP.
The result confirms that something in the measured response has changed. It does not confirm where the change originated. Treating a higher HETP as automatic proof that the packed bed has deteriorated skips a step that the measurement itself cannot skip.
An efficiency test characterizes the complete test setup, from the point of tracer injection to the point of detection, and the packed bed is only one part of that path.
Why a Changed HETP Is a Signal, Not a Diagnosis
HETP is calculated from the packed bed height and the theoretical plate number. The plate number is derived from the tracer response, typically from peak width relative to retention volume, or by moment analysis.
That response reflects dispersion contributed by every element the tracer passes through. This includes the packed bed itself, but also tubing, valves and the detector outside the column, the condition of frits and distributors inside it, and the conditions under which the test was run.
This is why a single number, taken in isolation, cannot distinguish a bed problem from a system problem. The diagnostic value of HETP comes from comparing it against a known reference under known conditions rather than reading it as a standalone verdict.
Start With What the Test Records Can Confirm
Before opening the column, check what can be confirmed from documentation.
Was the test run at the same linear velocity as the baseline? Column efficiency depends on velocity in a predictable but nonlinear way, with a minimum HETP occurring at an optimal velocity and higher HETP on either side of it. A test run faster or slower than the original qualification will therefore not be directly comparable, even on an unchanged bed.
The tracer and eluent combination and the injection volume belong in the same check.
When a salt tracer is used, eluent conductivity should also match the baseline. Insufficient ionic strength can allow electrostatic interaction between the tracer and the chromatography medium, changing peak shape without indicating a change in the packed bed.
Confirm also that equilibration, flow direction and the other test conditions defined in the qualification method matched the original test.
These are the fastest items to verify because they exist in a record rather than requiring disassembly.
Once the test conditions have been confirmed against the baseline, confirm that the changed result is reproducible before moving further into the investigation.
Look at the Flow Path Around the Column
External volume is the volume in the test system outside the column, from the point of sample application to the column inlet and from the column outlet to the point of detection.
Even a modest increase in external volume, caused for example by a longer tubing run, a different valve or a relocated detector, can produce a disproportionate shift in measured efficiency. It is therefore worth comparing the current external volume with what was documented at qualification.
Retention volume provides another useful cross check.
The expected retention volume for an inert tracer can be estimated from the bed void fraction, intraparticle porosity and size exclusion behaviour. If the observed retention volume has shifted from the baseline, investigate tracer interaction with the medium, holdup volume elsewhere in the system and possible changes in the effective bed volume or structure.
Retention volume does not localize the cause, but it can narrow the investigation.
Examine the Column Itself
The column hardware sits between the external system and the packed bed, and it stays on the list even when the surrounding system checks out.
Trapped air can disturb the flow path and affect peak shape. A partially blocked frit or screen can do the same. Over a working life, process debris or resin fines may accumulate in bed supports even when nothing else has changed.
Distributor condition matters for the same reason. Uneven distribution across the bed cross section increases dispersion independently of the resin itself.

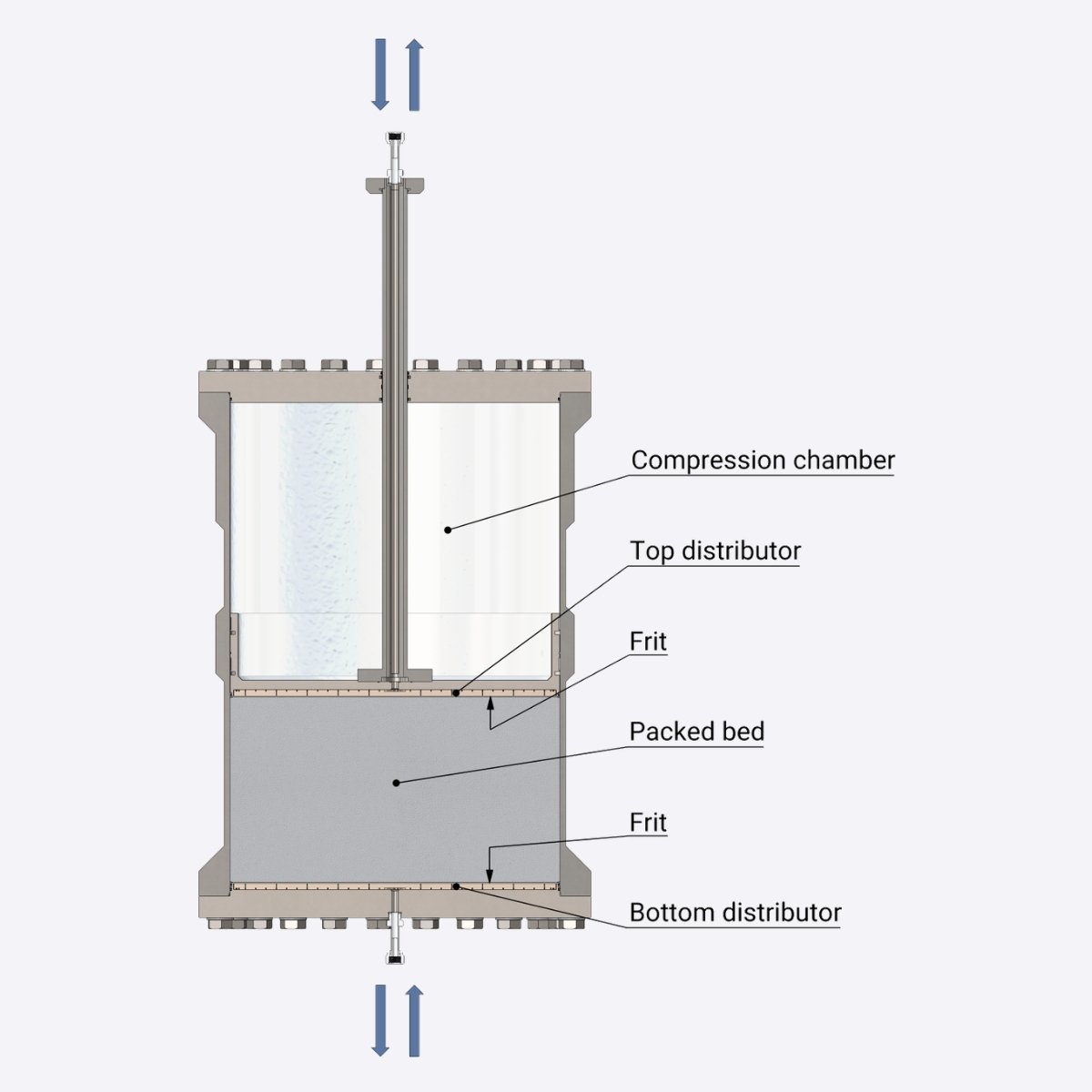

Peak Biotech DAC columns across LPLC, MPLC and HPLC variants use the same distributor principle at both ends. Where the column configuration and process allow it, comparing efficiency results in the opposite flow direction may provide additional information about whether the observed change is associated with flow direction, the distribution system or the packed bed.
Consider the Packed Bed
None of the previous checks rules out the packed bed, and it should remain part of the investigation.
Changes in bed integrity can originate in the original packing condition, develop through repeated operation or result from changes in the media or process history. Which mechanisms are plausible depends on the media, packing procedure and operating conditions.
Channel formation and loss of bed homogeneity are common examples, and either can increase measured dispersion.
The packed bed therefore remains a normal part of the investigation.
Read the Signals Together
Retention volume, peak asymmetry, pressure response and the original packing record all add context that HETP alone does not provide.
A bed related change and a system related change can produce a similar HETP shift while leaving different fingerprints across these other signals.
The useful pattern is therefore the combination of changes in HETP, peak symmetry, retention volume, pressure behaviour and test repeatability, read together against the qualified baseline.
Before deciding to repack, compare what has changed since the qualified baseline across the test method, external flow path, column hardware and packed bed.
That comparison provides a stronger basis for diagnosis than the HETP value alone.
If a change in column efficiency points toward the column hardware or internal flow path, our engineering team can review the column configuration and operating history with you.
